Off-line CE/LC-MS coupling Mass Spectrometry Interfacing

Microcolumn separation techniques and mass spectrometry coupling

Separation techniques coupled to mass spectrometry has become an indispensable tool in analysis of biomolecules. We focus on the coupling of column separation techniques to diverse MS systems including MALDI MS, ICP MS or ESI MS in order to gain maximum information from a single separation run. Primarily, the potential of off-line coupling is studied by our group as it allows decoupling of detection and separation in both time and space as well as archiving of the separation record.

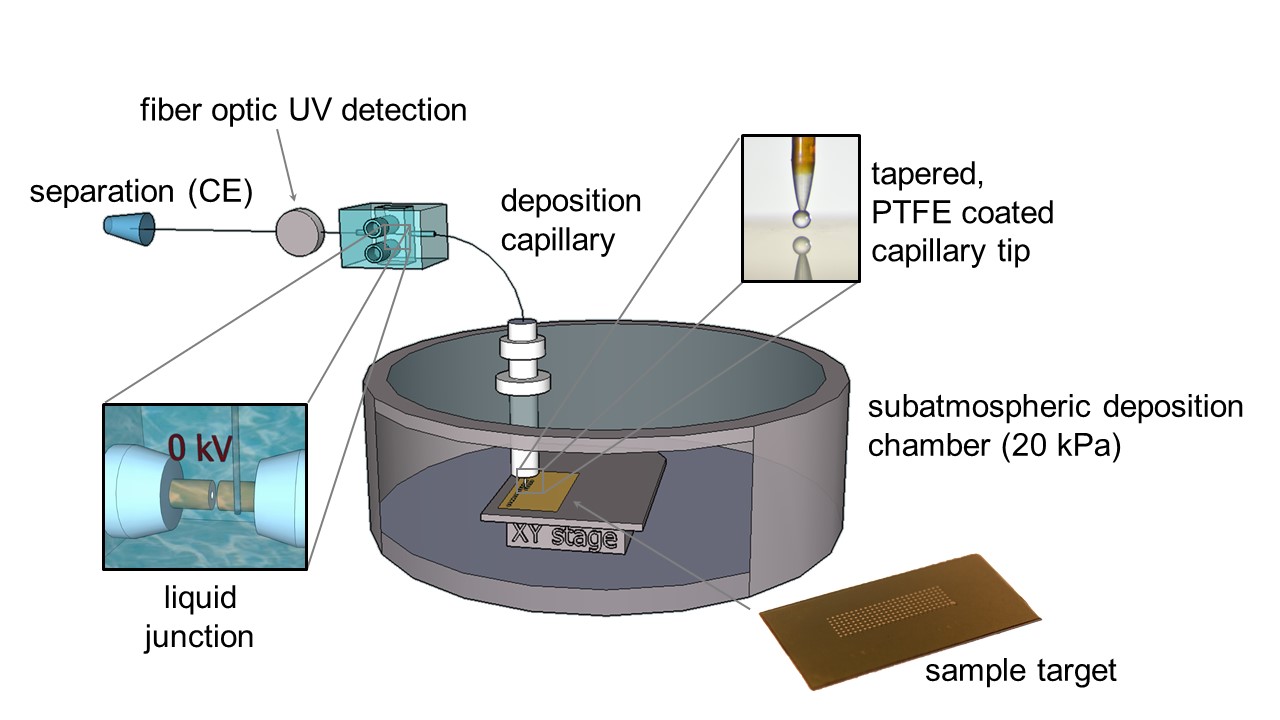

offline couplingSchematic of CE-MS off-line coupling

In our recent work, we proposed off-line coupling of single capillary electrophoresis separation record to both MALDI MS and substrate-assisted laser desorption (SALD) ICP MS based on a liquid junction, subatmospheric deposition chamber and custom designed sample target. This approach provides highly complementary, element- and molecular-specific information about present analytes making it a great tool for metalloprotein analysis.

References

Tomalová, I.; Foltynová, P.; Kanický, V.; Preisler, J. “MALDI MS and ICP MS Detection of a Single CE Separation Record: A Tool for Metalloproteomics“ Anal. Chem. 2014, 86, 647−654. http://dx.doi.org/10.1021/ac402941e

Peš, O., Preisler, J., “Off-line coupling of microcolumn separations to desorption mass spectrometry” J. Chromatogr. A 2010, 1217, 3966-3977. http://dx.doi.org/10.1021/ac801036x

Peš, O.; Jungová, P.; Vyhnánek, R.; Vaculovič, T.; Kanický, V.; Preisler, J. “Off-Line Coupling of Capillary Electrophoresis to Substrate-Assisted Laser Desorption Inductively Coupled Plasma Mass Spectrometry.“ Anal. Chem., 2008, 80, 8725-8732.

Moskovets, E.; Preisler, J; Chen, H. S.; Rejtar, T; Andreev, V. Karger. B. L. “High-Throughput Axial MALDI-TOF MS Using a 2 kHz Repetition Rate Laser” Anal. Chem. 2006, 78, 912-919. http://dx.doi.org/10.1021/ac051393t

Foret, F.; Preisler, J. “Liquid Phase Interfacing and Miniaturization in MALDI Mass Spectrometry”, Proteomics 2002, 2, 360-372.

Preisler, J.; Hu, P.; Rejtar, T.; Moskovets, E.; Karger, B. L. "Capillary Array Electrophoresis-MALDI Mass Spectrometry Using a Vacuum Deposition Interface", Anal. Chem. 2002, 74, 17-25.

Rejtar, T.; Hu, P.; Juhasz, P.; Campbell, J. M.; Vestal, M. L.; Preisler, J.; Karger, B. L. “Off-Line Coupling of High-Resolution Capillary Electrophoresis to MALDI-TOF and TOF/TOF MS”, J. Proteome Res. 2002, 1, 171-179.

Preisler, J.; Hu, P.; Rejtar, T.; Karger, B. L. “Capillary electrophoresis – Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometry Using a vacuum deposition Interface”, Anal. Chem. 2000, 72, 4785-4795.

Preisler, J.; Foret, F.; Karger, B. L. ” On-Line MALDI-TOF MS Using Continuous Vacuum Deposition Interface”, Anal. Chem. 1998, 70, 5278-5287.
